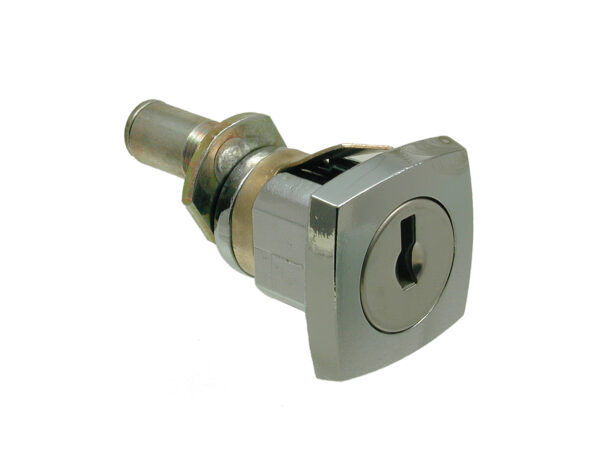

23.5mm Multi Drawer Lock 1346

A series of 23.5mm Multi-Drawer Locks in Bright Chrome.

Lock Description

Available with a square or conical head and with a selection of cam travel distances this lock is specifically designed for use in Metal and Wooden Office Furniture.

Locks F390 and F535 are available with the S-Line antibacterial over moulded keys. The unique over moulding process helps fight bacteria and avoids cross contamination between multiple users of the same key. Download the brochure or contact us for more information.

Have a question?
Lock Options
Product Code Key Series Combinations Body Length Head Width Head Depth Cam Travel E Dimension Finish Head Shape Head Shape Housing Fixing Enquire
1346 200 23.5 25.4 5 19 5 Bright Chrome Square Square Snap In Fix
F390 500 23.5 25.4 4.5 15 4.5 Bright Chrome Square Square Snap In Fix
F535 500 23.5 23 5.8 15 4.5 Bright Chrome Conical Conical Snap In Fix
Standard Features
  • Standard movements: 3, 4
  • Lock Combinations: 200-500
  • Standard finish: Bright chrome
  • Fixing hole shape: Double D
  • M Keyed system supplied to order only
  • Other cam travel, cam and panel thickness available on request – contact us today!

Additional information

23.5mm Multi Drawer Lock 1346 technical drawing
