22.4mm Multi Drawer Lock B289

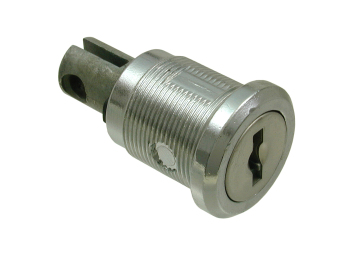

A 22.4mm Multi-Drawer Lock B289 in Bright Chrome.

Featured Technicals
22.4mm Multi Drawer Lock B289 Technical Drawing
Lock Description

This lock has been specifically designed for use in Metal and Wooden Office Furniture.

Have a question?
Lock Options
Product Code Key Series Combinations Body Length Head Width Head Depth Finish Head Shape Housing Fixing Max Panel Thickness Enquire
B289 2000 22.4 25 4.5 Bright Chrome Round Nut Fixing 12
Standard Features
  • Standard movements: 8, 14
  • Lock Combinations: 2,000
  • Standard finish: Bright chrome
  • Panel thickness: 12mm
  • Fixing hole shape: Single D flat left side
  • M Keyed system supplied to order only

Additional information

22.4mm Multi Drawer Lock B289 technical drawing
