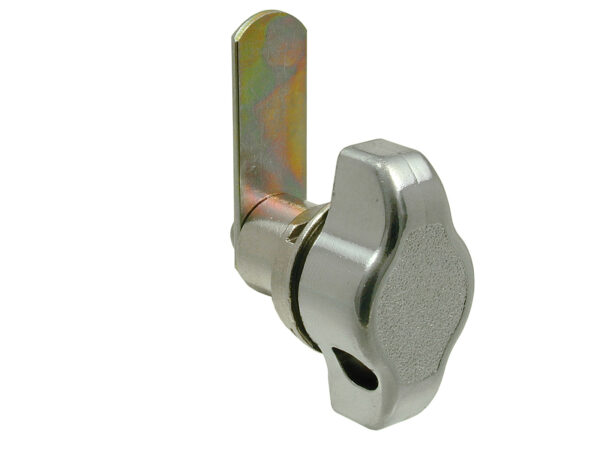

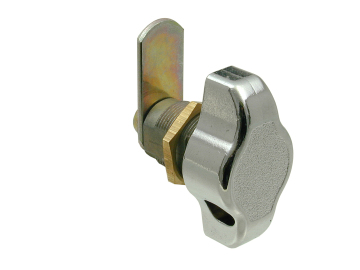

20mm Latch Lock 4441
A series of 20mm latch locks in bright chrome or bright nickel. Secured with a padlock, these locks are ideal for applications such as Metal Office Furniture and Lockers.
Lock Options
| Product Code | Body Length | Head Height | Head Depth | Finish | Max Panel Thickness | Shackle Diameter | Y Dimension | Inquire |
|---|---|---|---|---|---|---|---|---|
| 4438 | 20 | 46 | 17.4 | Bright Nickel | 13 | Min 5 – Max 7 | 12 | Contact Sales |
| 4439 | 20 | 46 | 17.4 | Bright Nickel | 12 | Min 5 – Max 7 | 12 | Contact Sales |
| 4440 | 20 | 46 | 17.4 | Bright Nickel | 13 | Min 5 – Max 7 | 12 | Contact Sales |
| 4441 | 20 | 46 | 17.4 | Bright Nickel | 12 | Min 5 – Max 7 | 12 | Contact Sales |
| 4442 | 20 | 46 | 17.4 | Bright Nickel | 13 | Min 5 – Max 7 | 12 | Contact Sales |
| 4443 | 20 | 46 | 17.4 | Bright Nickel | 12 | Min 5 – Max 7 | 12 | Contact Sales |
| 4456 | 20 | 46 | 17.4 | Bright Nickel | 13 | Min 5 – Max 7 | 12 | Contact Sales |
| 4458 | 20 | 46 | 17.4 | Bright Nickel | 13 | Min 5 – Max 7 | 12 | Contact Sales |
| B728 | 18.6 | 46 | 17.4 | Bright Nickel | 0.8 | Min 5 – Max 7 | Contact Sales |
Standard Features
- Standard movements: 1, 2
- Lock Combinations: Padlock
- Standard finish: Bright nickel, bright chrome (F222 only)
- Panel thickness: See table and state when ordering
- Recommended shackle diameter: 5-7mm
- Dimension ‘B’ specification: See Cams
Additional Information
20mm Latch Lock 4441 technical drawing
