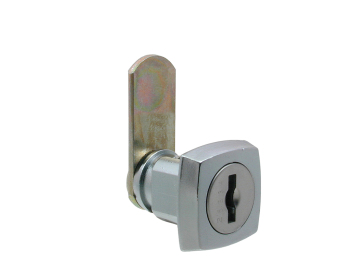

20mm Cam Lock 4239
A 20mm cam lock available in bright chrome. These are ideal for many applications including Healthcare and Asset Management.
Lock Options
| Product Code | Key Series | Housing Mounting | Combinations | Body Length | Head Width | Head Depth | Finish | Head Shape | Max Panel Thickness | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|
| 4238 | Snap In Fix | 2000 | 20 | 23 | 5.8 | Bright Chrome | Conical | 3 | Contact Sales | |
| 4239 | Snap In Fix | 2000 | 20 | 25.4 | 5.8 | Bright Chrome | Square | 3 | Contact Sales |
Standard Features
- Standard movements: 1, 3, 4
- Lock Combinations: 2000
- Standard finish: Bright chrome
- Mounting hole shape: Double D
- M Keyed system supplied to order only
- Dimension ‘B’ Specification: See Cams
Additional Information
20mm Cam Lock 4239 technical drawing
