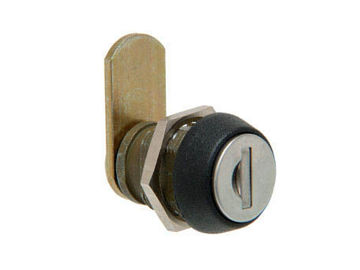

20mm Cam Lock 3811
A wide range of 20mm cam locks in olive drab. These cam locks are available capped, uncapped or with a dust cover and the barrel can be assembled with an “O” ring on request. Applications for these cam locks include Enclosures and Mail Boxes.
Lock Options
| Product Code | Key Series | Mounting Hole Size | Housing Mounting | Combinations | Body Length | Head Width | Head Depth | Cap | Finish | Head Shape | Housing Fixing | Max Panel Thickness | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3811 | 16.1 | Nut mounting | 2000 | 20 | 23 | 6.9 | Capped | Olive Drab | Conical | 9 | Contact Sales | ||
| 3813 | 16.1 | Nut mounting | 2000 | 20 | 23 | 6.9 | Uncapped | Olive Drab | Conical | 9 | Contact Sales | ||
| 3814 | 16.1 | 2000 | 20 | 23 | 6.9 | Capped | Olive Drab | Conical | 9 | Contact Sales | |||
| 3816 | 16.1 | 2000 | 20 | 23 | 6.9 | Uncapped | Olive Drab | Conical | 9 | Contact Sales | |||
| 3817 | 16.1 | Snap In Fix | 2000 | 20 | 23 | 6.9 | Capped | Olive Drab | Conical | 0.5 – 0.8 / 1.5 – 1.83 | Contact Sales | ||
| 3819 | 16.1 | Snap In Fix | 2000 | 20 | 23 | 6.9 | Uncapped | Olive Drab | Conical | 0.5 – 0.8 / 1.5 – 1.83 | Contact Sales | ||
| 3821 | 16.6 | Nut mounting | 2000 | 20 | 23 | 6.9 | Capped | Olive Drab | Conical | 9 | Contact Sales | ||
| 3823 | 16.6 | Nut mounting | 2000 | 20 | 23 | 6.9 | Uncapped | Olive Drab | Conical | 9 | Contact Sales | ||
| 3824 | 16.6 | 2000 | 20 | 23 | 6.9 | Capped | Olive Drab | Conical | 9 | Contact Sales | |||
| 3829 | 16.6 | Snap In Fix | 2000 | 20 | 23 | 6.9 | Uncapped | Olive Drab | Conical | 0.5 – 0.8 / 1.5 – 1.83 | Contact Sales |
Standard Features
- Standard movements: 3, 4, 8, 9
- Lock Combinations: 2000 (*500 combinations only for movements 8 & 9)
- Standard finish: Olive drab
- Mounting hole shape: Double D
- Max panel thickness: 9mm
- Max panel thickness with snap in fix housing: 0.5-0.8mm with clip 9106401 or 1.5-1.83mm with clip 9106501
- M Keyed system supplied to order only
- Comprehensive range of Cams and Accessories available
Additional Information
20mm Cam Lock 3811 technical drawing
