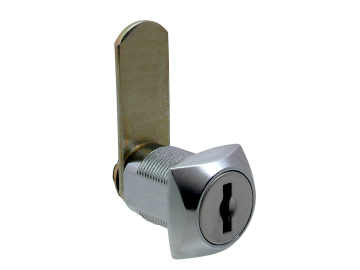

20mm Cam Lock 0802
A wide range of 20mm cam locks available in bright chrome. Many of these cam locks have a shuttered barrel which can be greased for greater protection when used outdoors, making them ideal for applications such as Automotive Accessories, Enclosures and Mail Boxes.
Lock Options
| Product Code | Key Series | Mounting Hole Type | Housing Mounting | Combinations | Body Length | Head Width | Head Depth | Cam Fixing | Finish | Head Shape | Housing Fixing | Max Panel Thickness | Version | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4223 | B | 2000 | 20 | 24 | 7 | Circlip | Bright Chrome | Square | 12 | Standard | Contact Sales | |||
| 4224 | B | Nut mounting | 2000 | 20 | 23 | 7 | Circlip | Bright Chrome | Conical | 12 | Standard | Contact Sales | ||
| 0802 | A | Nut mounting | 2000 | 20 | 24 | 7 | Nut | Bright Chrome | Square | 12 | Standard | Contact Sales | ||
| 0804 | A | 2000 | 20 | 24 | 7 | Nut | Bright Chrome | Square | 12 | Standard | Contact Sales | |||
| 0806 | A | Nut mounting | 2000 | 20 | 23 | 7 | Nut | Bright Chrome | Conical | 12 | Standard | Contact Sales | ||
| 0808 | A | 2000 | 20 | 23 | 7 | Nut | Bright Chrome | Conical | 12 | Standard | Contact Sales | |||
| 0812 | B | Nut mounting | 2000 | 20 | 24 | 7 | Nut | Bright Chrome | Square | 12 | Standard | Contact Sales | ||
| 0814 | B | 2000 | 20 | 24 | 7 | Nut | Bright Chrome | Square | 12 | Standard | Contact Sales | |||
| 0816 | B | Nut mounting | 2000 | 20 | 23 | 7 | Nut | Bright Chrome | Conical | 12 | Standard | Contact Sales | ||
| 0818 | B | 2000 | 20 | 23 | 7 | Nut | Bright Chrome | Conical | 12 | Standard | Contact Sales | |||
| 0852 | A | Nut mounting | 2000 | 20 | 24 | 7 | Nut | Bright Chrome | Square | 12 | Shuttered | Contact Sales | ||
| 0854 | A | 2000 | 20 | 24 | 7 | Nut | Bright Chrome | Square | 12 | Shuttered | Contact Sales | |||
| 0856 | A | Nut mounting | 2000 | 20 | 23 | 7 | Nut | Bright Chrome | Conical | 12 | Shuttered | Contact Sales | ||
| 0858 | A | 2000 | 20 | 23 | 7 | Nut | Bright Chrome | Conical | 12 | Shuttered | Contact Sales | |||
| 0862 | B | Nut mounting | 2000 | 20 | 24 | 7 | Nut | Bright Chrome | Square | 12 | Shuttered | Contact Sales | ||
| 0864 | B | 2000 | 20 | 24 | 7 | Nut | Bright Chrome | Square | 12 | Shuttered | Contact Sales | |||
| 0866 | B | Nut mounting | 2000 | 20 | 23 | 7 | Nut | Bright Chrome | Conical | 12 | Shuttered | Contact Sales | ||
| 0868 | B | 2000 | 20 | 23 | 7 | Nut | Bright Chrome | Conical | 12 | Shuttered | Contact Sales | |||
| F353 | B | Nut mounting | 2000 | 20 | 23 | 7 | Nut | Bright Chrome | Conical | 12 | Standard | Contact Sales |
Standard Features
- Standard movements: 1, 2, 3, 4, 8 (with a reduced number of combinations)
- Lock Combinations: 2000
- Standard finish: Bright chrome
- M Keyed system supplied to order only
- Dimension ‘B’ specification: See Cams
- 4223 and 4224 only available with 3mm thick cam
Additional Information
20mm Cam Lock 0802 technical drawing
