20mm – 21mm Slamlock 0305
A series of 20mm, 20.8mm and 21mm Slamlocks available in a variety of finishes. These locks are ideal for numerous applications including Enclosures.
Lock Options
| Product Code | Key Series | Housing Mounting | Combinations | Body Length | Head Width | Head Depth | A Dimension | B Dimension | Head Shape | Housing Fixing | Movement | Version | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5836 | 200 | 20 | 22 | 5 | 20 | 12 | Conical | Standard | Contact Sales | ||||
| 0305 | Nut mounting | 200 | 20 | 22 | 4.3 | 20 | 14.7 | Round | 1 | Standard | Contact Sales | ||
| 0336 | Clip Fix | 200 | 20.8 | 22 | 4.3 | 20 | 14.7 | Conical | 1 | Standard | Contact Sales | ||

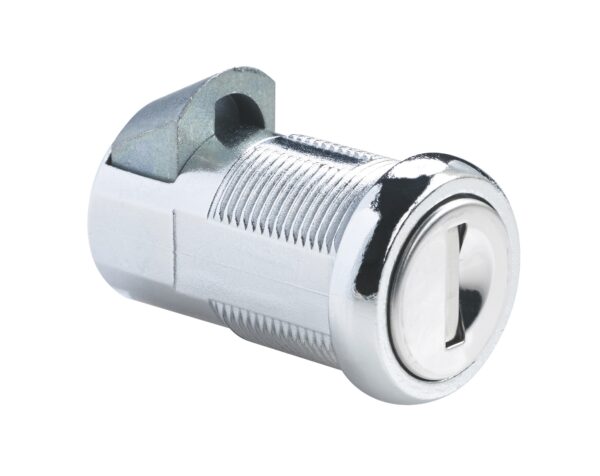

| B586 | Nut mounting | 200 | 21 | 22 | 4.3 | 21 | 14 | Round | 2 | Shuttered | Contact Sales | ||
| B861 | Nut mounting | 500 | 21 | 22 | 4.3 | 21 | 13 | Conical | 8 | Standard | Contact Sales | ||
| C432 | 500 | 21 | 22 | 4.3 | 21 | 14.7 | Conical | 8 | Standard | Contact Sales |
Standard Features
- Standard finish: Bright chrome, black chrome, satin chrome
- M Keyed system supplied to order only
- Shuttered version: B586
- Accessories: Supplied with diecast strike plate, recommended fixing screws M3x8 (not supplied)
- Slam action available with and without key
Additional Information
20mm - 21mm Slamlock 0305 technical drawing
