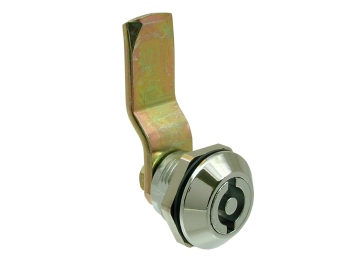

16mm Tool Operated IP65 Cam Lock F183

A range of 16mm tool operated, water resistant camlocks available in bright chrome or black epoxy. These locks are IP65 rated and can be used as a locking mechanism for numerous applications including hatches, switch cabinets, metal lockers and machine doors.

View Lock Details
16mm Tool Operated Water Resistant Cam Lock F183
16mm Tool Operated Water Resistant Cam Lock F183
Featured Technicals
Drawing
Lock Options
Product Code Key Series Housing Mounting Body Length Head Depth Cam Fixing Head Shape Housing Fixing IP65 Key Number Max Panel Thickness Inquire
F183 16 6 Screw Conical Yes F8075 8 Contact Sales
F184 16 6 Screw Conical Yes F8412-C7M 8 Contact Sales
F185 16 6 Screw Conical Yes F8412-T8M 8 Contact Sales
F186 16 6 Screw Conical Yes F8412-C8M 8 Contact Sales
F187 16 6 Screw Conical Yes F8088, F8412-C6M 8 Contact Sales
F208 16 6 Screw Conical Yes F8197, F8412-T6.5 8 Contact Sales
F209 16 6 Screw Conical Yes F8412-T9M 8 Contact Sales
F297 16 6 Riveted Conical Yes 8 Contact Sales
F307 16 6 Riveted Conical Yes 8 Contact Sales
F470 16 3 Screw Conical Yes F8074 8 Contact Sales
F471 16 3 Screw Conical Yes F8075 8 Contact Sales
F472 16 3 Screw Conical Yes F8197, F8412-T6.5 8 Contact Sales
F473 16 3 Screw Conical Yes F8412-T8M 8 Contact Sales
F475 16 3 Screw Conical Yes F8088, F8412-C6M 8 Contact Sales
F476 Nut mounting 16 3 Screw Conical Yes F8080 8 Contact Sales
F478 Nut mounting 16 3 Screw Conical Yes F8412-C8M 8 Contact Sales
F479 Nut mounting 16 3 Screw Conical Yes 8 Contact Sales
F480 Nut mounting 16 3 Screw Conical Yes 8 Contact Sales
Standard Features
  • IP65 rated
  • Standard movements: 8, 9
  • Standard finish: Bright chrome, black epoxy
  • Panel thickness: 8mm
  • Mounting hole shape: Squared
  • Comprehensive range of cams and accessories available: See Cams

Additional Information

16mm Tool Operated IP65 Cam Lock F183 technical drawing
