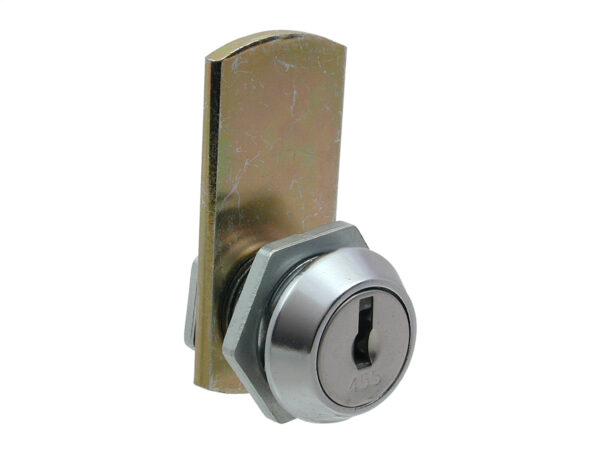

13mm Cam Lock F5
A range of 13mm cam locks available in bright chrome with a double D mounting hole shape. The F55 cam locks can be shuttered and greased for greater protection when used outdoors, making them ideal for applications such as Electrical Cabinets and Enclosures.
Lock Options
| Product Code | Key Series | Combinations | Body Length | Head Width | Head Depth | Cam | Finish | Head Shape | Hours | Housing Fixing | Max Panel Thickness | Movement | Version | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F5 | 500 | 13 | 24 | 5 | Crank away, Crank towards, Flat | Bright Chrome | Conical | 12 o'clock, 3 o'clock, 6 o'clock, 9 o'clock | 5 | 1, 2, 3, 4 | Standard | Contact Sales | ||
| F5 A.C.E | 13 | 24 | 5 | Bright Chrome | Conical | 5 | Standard | Contact Sales | ||||||
| F55 | 500 | 13 | 24 | 5 | Crank away, Crank towards, Flat | Bright Chrome | Conical | 12 o'clock, 3 o'clock, 6 o'clock, 9 o'clock | 5 | 1, 2, 3, 4 | Shuttered | Contact Sales |
Standard Features
- Standard movements: 1, 2, 3, 4
- Lock Combinations: 500
- Standard finish: Bright chrome
- Mounting hole shape: Double D
- M Keyed system supplied to order only
- Dimension ‘B’ Specification: See Cams
Additional Information
13mm Cam Lock F5 technical drawing
