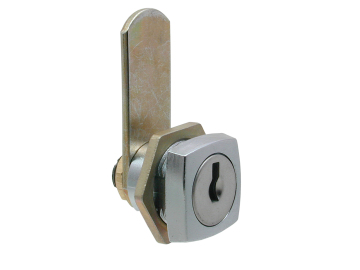

13mm Cam Lock 0309
A series of 13mm cam locks available in bright chrome with a Double D mounting hole shape. These cam locks are ideal for many applications including Asset Management and Enclosures.
Lock Options
| Product Code | Key Series | Combinations | Body Length | Head Width | Head Depth | Finish | Head Shape | Housing Fixing | Max Panel Thickness | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|
| 0309 | 200 | 13 | 23 | 5 | Bright Chrome | Square | 5 | Contact Sales | ||
| 0310 | 200 | 13 | 23 | 5 | Bright Chrome | Square | 7 & 4 | Contact Sales | ||
| 0607 | 200 | 13 | 23 | 5 | Bright Chrome | Square | 5 | Contact Sales | ||
| 0608 | 200 | 13 | 23 | 5 | Bright Chrome | Square | 7 & 4 | Contact Sales |
Standard Features
- Standard movements: 1, 2, 3, 4
- Lock Combinations: 200-500
- Standard finish: Bright chrome
- Mounting hole shape: Double D
- M Keyed system supplied to order only
- Dimension ‘B’ Specification: See Cams
Additional Information
13mm Cam Lock 0309 technical drawing
