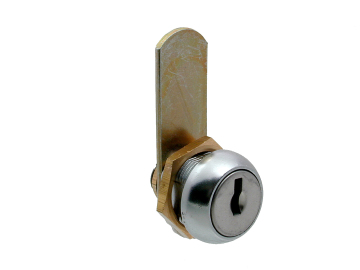

11mm Cam Lock 0361
A range of 11mm cam locks available in bright chrome with a double D mounting hole shape. The shuttered versions can be passivated and greased for greater protection when used outdoors, making them ideal for applications such as Automotive Accessories, Enclosures and Mail Boxes.
Lock Options
| Product Code | Key Series | Combinations | Body Length | Head Width | Head Depth | Cam Fixing | Finish | Head Shape | Housing Fixing | Max Panel Thickness | Version | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4669 | 200 | 11 | 22 | 7 | Circlip | Bright Chrome | Round | 4 | Shuttered | Contact Sales | ||
| 4673 | 200 | 11 | 22 | 7 | Circlip | Bright Chrome | Round | 7 & 3.2 | Shuttered | Contact Sales | ||
| 0361 | 200 | 11 | 22 | 7 | Nut | Bright Chrome | Round | 4 | Standard | Contact Sales | ||
| 0362 | 200 | 11 | 22 | 7 | Nut | Bright Chrome | Round | 7 & 3.2 | Standard | Contact Sales | ||
| 0609 | 200 | 11 | 22 | 7 | Nut | Bright Chrome | Round | 4 | Shuttered | Contact Sales | ||
| 0610 | 200 | 11 | 22 | 7 | Nut | Bright Chrome | Round | 7 & 3.2 | Shuttered | Contact Sales | ||
| 0611 | 200 | 11 | 22 | 7 | Nut | Bright Chrome | Round | 4 | Standard | Contact Sales | ||
| 0612 | 200 | 11 | 22 | 7 | Nut | Bright Chrome | Round | 7 & 3.2 | Standard | Contact Sales | ||
| B489 | 2000 | 11 | 23 | 6.9 | Circlip | Bright Chrome | Round | 4 | Standard | Contact Sales |
Standard Features
- Standard movements: 1, 2, 3, 4, 5, 6, (Across rounds fixing not possible with movements 5, 6)
- Lock Combinations: 200-2000
- Standard finish: Bright chrome
- Mounting hole shape: Double D
- M Keyed system supplied to order only
- Dimension ‘B’ Specification: See Cams
Additional Information
11mm Cam Lock 0361 technical drawing
