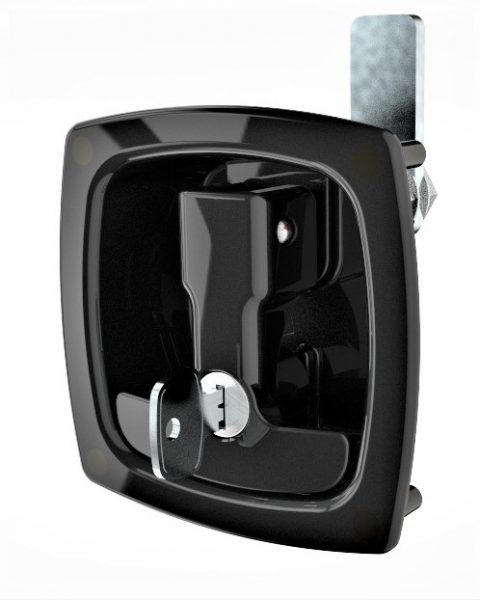

Heavy Duty Compression Latch A232

A heavy duty lift and turn compression latch available with a stainless steel cup if required.

Lock Description

When used with the cup, the latch can be mounted within the surface of the door to avoid snagging.

With an easy to grip T handle, this durable latch is designed for use in heavy duty applications such as access panels, exterior storage compartments and toolboxes and excavator flaps. When in the closed position, the latch provides a compressive seal that ensures doors and flaps remain closed in use despite vibrations and shocks. Simply lift the latch to release the compression and turn it to rotate the cam.

The stainless steel cam provides additional strength and corrosion resistance, whilst the cylinder is capped to prevent the ingress of dust and dirt.

Available with or without the cup, and 200 different differs or bespoke locking systems and finishes on request.

For further information download the brochure here or contact our sales team.

Have a question?
Lock Options
Product Code Key Series Combinations Body Length Body Height Body Width Body Depth Handle Depth Bowl Cam Fixing Finish Handle Height Handle Width Housing Fixing Lock Type Max Panel Thickness Mounting Stroke Enquire
A232 200 52.6 100 100 68 68 With Bowl Nut Black 100 100 Nut Fixing Compression Lock 10 Flush Fit 6
Standard Features
  • Installation hole: see technical drawing
  • Material thickness: 0.6mm – 10mm
  • ‘X’ Dimension: at customers request, please confirm when placing order
  • Vibration-proof mounting:
  • Robust stainless steel cup in RAL 9005 glossy black:
  • 200 standard differs available:
  • Dust and particle protected locking cylinder:
  • Stainless steel cam available in various designs:
  • Available with or without cup:
  • Bespoke locking systems and finishes available on request

Additional information

Heavy Duty Compression Latch A232 technical drawing
