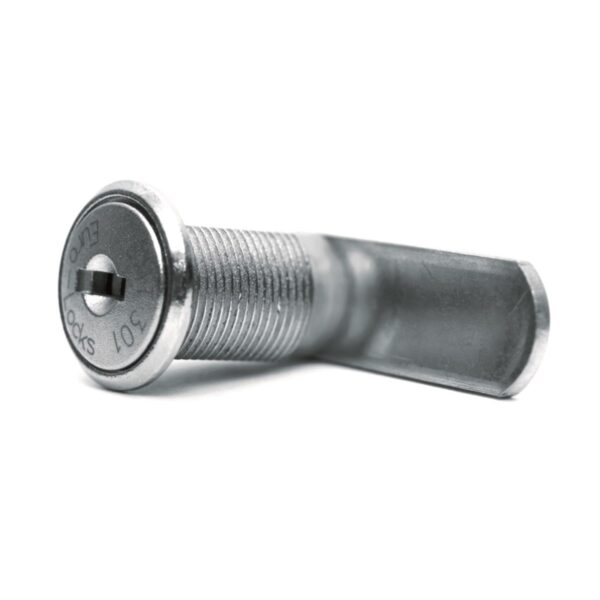

Glass Door Lock 0468

A Glass Door Lock 0468 available in Bright nickel or black KTL with a removable barrel.

Featured Technicals
Glass Door Lock 0468 Technical Drawing
Lock Description

This lock can be supplied with or without the plates and so can be used as a camlock (without the plates) or as a single or double glass door lock with the plates. With the plates fitted, these locks are ideal for use on glass doors in cupboards and cabinets.

Have a question?
Lock Options
Product Code Key Series Combinations Body Length Head Height Head Width Head Depth Cam Fixing Movement Enquire
0433 500 22 23 2 Nut 3
0468 500 20 35 60 2 Nut 3
Standard Features
  • Standard movements: 3 (180° CW)
  • Fixing hole size: 13.1 x 16.1mm
  • Lock combinations: 500
  • Standard finish: Bright nickel or black KTL
  • Can be supplied with Master Key and Sub-Master Key systems
  • Comprehensive range of cams available (“M” cam piercing): See Cams

Accessories available:

  • Plastic washer 9212354: 20 x 16 x 1
  • Steel washer C4076: 20 x 16 x 1

Additional information

Glass Door Lock 0468 technical drawing

Key Options

Metal Keys

Key Code Key Combinations
B8842 SMT001 – SMT250
B8843 SMT301 – SMT550

Capped Keys

Key Code Key Combinations
B8849 SMT001 – SMT250
B8850 SMT301 – SMT550

Split Keys

Key Code Key Combinations
B8752 SMT001 – SMT250
B8765 SMT301 – SMT550

General Master Key

Key Code
MAS/S04 Opens the complete range of combinations in this series

Sub-Master Keys

Key Code Key Combinations
SM1-04 SMT001 – SMT250
SM2-04 SMT301 – SMT550

Removal Key

Key Code
B8754 Barrel extraction key for all combinations in this series
