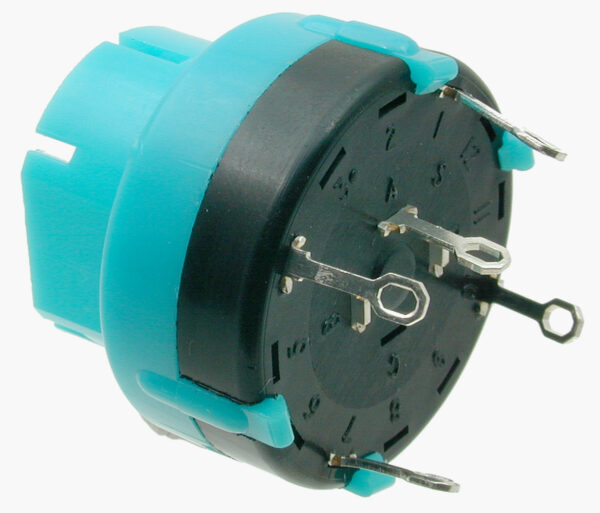

Snap-on C.K. Switch 9556515
A range of snap-on C.K. switches available with various circuit configurations and switch types. When connected to an RPT, 5-disc or 8-disc cam lock, these switches form a key switch which can be commonly found on Enclosure applications such as fuse boxes.
Note: the circuit formed by this switch is non-shorting (see lock options below). Shorting versions and other switch variants are available on request.
Lock Description
Have a question?
Lock Options
| Product Code | Circuit | Indexing | Switch Type | Inquire |
|---|---|---|---|---|
| 9556515 | 1 Pole 6 Way | 60° | Solder Tag | Contact Sales |
| 9556516 | 1 Pole 6 Way | 60° | P.C.B. | Contact Sales |
| 9556517 | 1 Pole 4 Way | 90° | Solder Tag | Contact Sales |
| 9556526 | 2 Pole 2 Way | 90° | P.C.B. | Contact Sales |
Standard Features
- Soldering Specification: see Technical Information
Electrical Specification
- Proof voltage: 1000V RMS
- Current carrying capacity (non-switching): 5 A
- Contact rating (switch resistive load): 150mA 250V – 350mA 110V – 1A 25V
- Insulation resistance: >25G Ohm
- Initial contact resistance: < 50m Ohm
- Minimum operating life: 10,000 cycles
- Contact material: silver plated brass
- Body material: Glass loaded nylon/polycarbonate
- Operating temperature: -20 to 65⁰C
Additional Information
Snap-on C.K. Switch 9556515 technical drawing
| Switch Type | Circuit (non-shorting) | Indexing | |
| Solder Tag | P.C.B Mount | ||
| 9556515 | 9556516 | 1 Pole 6 Way | 60° |
| 9556517 | – | 1 Pole 4 Way | 90° |
| – | 9556526 | 2 Pole 2 Way | 90° |
