5-Disc Snap-on Key Switch 5001

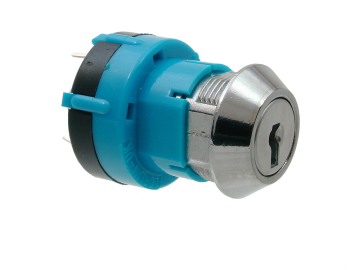

A range of 5-disc, snap-on, key switches available in bright chrome with a double D mounting hole shape. Once connected to a C.K. low voltage or M.S. mains voltage switch, the key switch forms part of a circuit that is controlled by the key. This makes it ideal for use in Enclosure applications such as fire alarm systems and circuit breakers. It is recommended that, when these locks are installed, the key is turned to position “1” and removed for ease of switch alignment.

View Lock Details
Featured Technicals
Lock Options
Product Code Combinations Body Length Head Width Head Depth Head Shape Key Free Total Movement Inquire
5001-01-2A 200 35 22.3 5.5 Conical 1 90° Contact Sales
5001-03-2A 200 35 22.3 5.5 Conical 1, 7 180° Contact Sales
5002-05-2A 200 35 22.3 5.5 Conical 1, 4 90° Contact Sales
5002-12-2A 200 35 22.3 5.5 Conical 1, 4, 7 180° Contact Sales
5002-18-2 200 35 22.3 5.5 Conical 1, 10, 4, 7 360° Contact Sales
5003-21-2 200 35 22.3 5.5 Conical 1, 3, 5, 7 180° Contact Sales
5003-22-2 200 35 22.3 5.5 Conical 1, 11, 3, 5, 7, 9 360° Contact Sales
5003-24-2 200 35 22.3 5.5 Conical 1, 2, 5 120° Contact Sales
5003-26-2A 200 35 22.3 5.5 Conical 1, 3 60° Contact Sales
5003-45-2 200 35 22.3 5.5 Conical 1, 3, 5, 7, 9 240° Contact Sales
Standard Features
  • Standard movements: Key free 1, 3, 4, 5, 7, 9, 10 ,11
  • Lock Combinations: 200
  • Standard finish: Bright chrome
  • Mounting hole shape: Double D
  • Switch Type Available: C.K. (Low Voltage) Switches or M.S. (Mains Voltage) Switches
  • Soldering Specification: see Technical Resources

Additional Information

5-Disc Snap-on Key Switch 5001 technical drawing
Product Code Total Movement Key Free
5001-01-2A 90° 1
5002-05-2A 90° 1, 4
5001-03-2A 180° 1, 7
5002-12-2A 180° 1, 4, 7
5003-26-2A 60° 1, 3
5003-24-2 120° 1, 3, 5
5003-21-2 180° 1, 3, 5, 7
5003-45-2 240° 1, 3, 5, 7, 9
5002-18-2 360° 1, 4, 7, 10
5003-22-2 360° 1, 3, 5, 7, 9, 11
