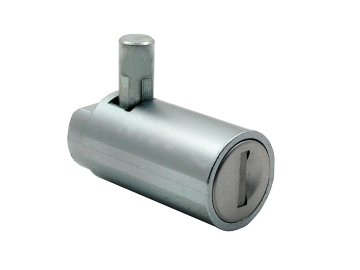

28.3mm Pillar Lock B830

A 28.3mm Pillar Lock in bright chrome, ideal for use on commercial refrigerators, double doors and sliding door systems.

Featured Technicals
28.3mm Pillar Lock B830 Technical Drawing
Lock Options
Product Code Key Series Combinations Body Length Head Width Head Depth Finish Head Shape Movement X Dimension Y Dimension Enquire
B830 200 34 19 34 Bright Chrome Cylindrical 3 26.4 30.7
B887 200 34 19 34 Bright Chrome Cylindrical 147° 21 25
B956 200 34 19 34 Bright Chrome Cylindrical 3 26.4 30.7
Standard Features
  • Standard movements: 3, 147° (B887)
  • Lock Combinations: 200
  • Standard finish: Bright chrome
  • Fixing hole shape: Round
  • B956: Has a 6mm threaded hole
  • ‘X’ Dimension = Pillar movement: 6.8mm from distance from centre

Additional information

28.3mm Pillar Lock B830 technical drawing
