22mm Rim Lock 0476

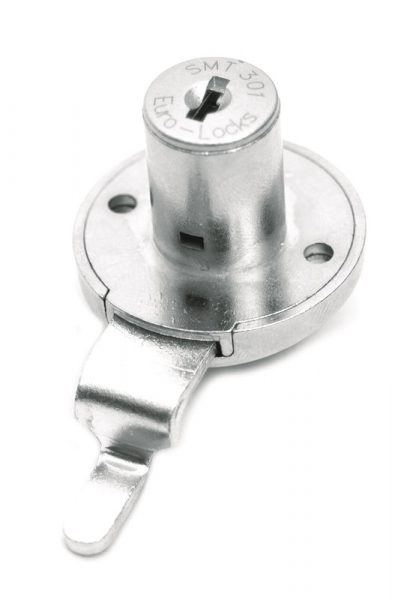

A 22mm Rim Lock 0476 with a removable barrel.

Featured Technicals
22mm Rim Lock 0476 Technical Drawing
Lock Description

This lock has a reduced cam which means it can be operated without the use of a visible striker plate, making it ideal for use on items such as cupboards and cabinets.

Have a question?
Lock Options
Product Code Key Series Combinations Body Length Head Depth Lock Fixing Movement Nozzle Diameter Enquire
0476 500 22 2 Vertical 3 16.3
0476 B 500 22 2 Vertical 3 17.8
Standard Features
  • Standard movements: 3 (180° CW)
  • Standard cam stroke: 7mm
  • Nozzle diameter: 16.3mm or 17.8mm
  • Lock Combinations: 340
  • Standard finish: Bright nickel, black KTL
  • Can be supplied with Master Key and Sub-Master Key systems

Additional information

22mm Rim Lock 0476 technical drawing

Accessories

Rosettes

Code Description Dimensions
70080037B Rosette 16.3mm nozzle
C4236 Rosette 17.8mm nozzle

Please state when ordering which Rosette is required

Key Options

Metal Keys

Key Code Key Combinations
B8842 SMT001 – SMT250
B8843 SMT301 – SMT550

Capped Keys

Key Code Key Combinations
B8849 SMT001 – SMT250
B8850 SMT301 – SMT550

Split Keys

Key Code Key Combinations
B8752 SMT001 – SMT250
B8765 SMT301 – SMT550

General Master Key

Key Code
MAS/S04 Opens the complete range of combinations in this series

Sub-Master Keys

Key Code Key Combinations
SM1-04 SMT001 – SMT250
SM2-04 SMT301 – SMT550

Removal Key

Key Code
B8754 Barrel extraction key for all combinations in this series
