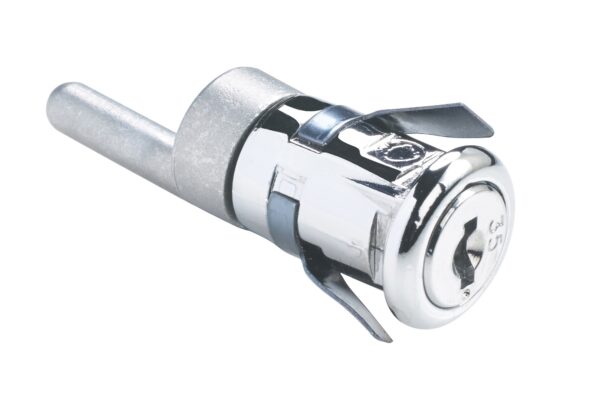

22.8mm Pedestal Lock with Removable Barrel 5606

A series of 22.8mm pedestal locks with a removable barrel. Available in a number of different finishes and cam lengths, this lock has been specifically designed for use with pedestal drawer units.

For further information on the Removable Barrel System please see our Technical Section or contact the sales department.

View Lock Details
Featured Technicals
Lock Options
Product Code Key Series Combinations Body Length Head Width Head Depth Head Shape Max Panel Thickness Inquire
5606 200 22.8 20 3 Cylindrical 0.9 Contact Sales
5607 200 22.8 20 3 Cylindrical 0.9 Contact Sales
Standard Features
  • Standard movements: 3, 4
  • Lock Combinations: 200 (500 on request)
  • Standard finish: Bright chrome, satin chrome, black chrome
  • Panel thickness: 0.9mm
  • Mounting hole shape: Round special (see technical drawing)
  • M Keyed system supplied to order only
  • Standard actuator lengths ‘X’: 20, 25, 32, 40, 45, 55mm

Additional Information

22.8mm Pedestal Lock with Removable Barrel 5606 technical drawing
