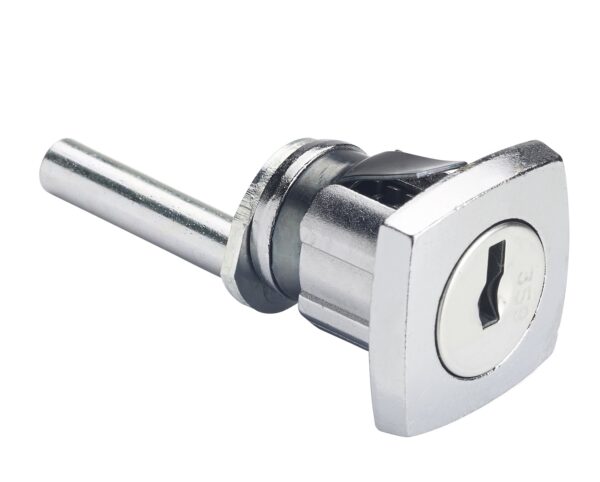

21.9mm Multi Drawer Lock B568

A range of 21mm and 21.9mm Multi-Drawer Locks in Bright Chrome.

Featured Technicals
21.9mm Multi Drawer Lock B568 Technical Drawing
Lock Description

Available with a selection of cam actuator lengths (‘X’ dimension), this lock has been specifically designed for use in Wooden and Metal Office Furniture.

Have a question?
Lock Options
Product Code Key Series Combinations Body Length Head Depth Actuator Lengths Finish Head Shape Housing Fixing Max Panel Thickness Enquire

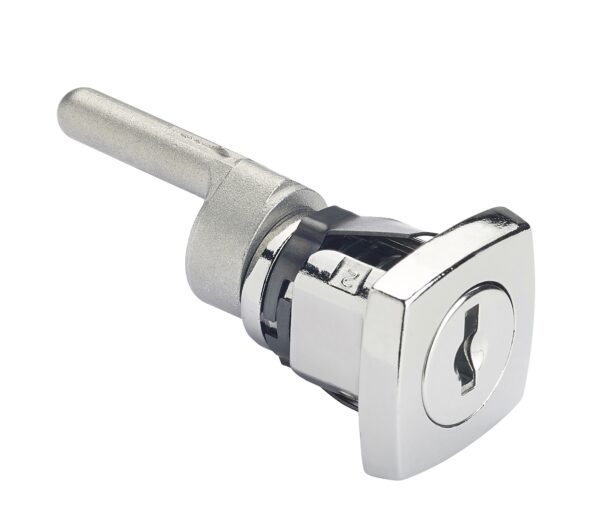

2736 2000 21 0 20, 25, 32, 40, 45, 55 Bright Chrome Conical Snap In Fix 3
B568 200 21.9 0 29 Bright Chrome Conical Snap In Fix 3
Standard Features
  • Standard movements: 3, 4
  • Lock Combinations: 200-2,000
  • Standard finish: Bright chrome
  • Panel thickness: 3mm
  • Fixing hole shape: Double D
  • M Keyed system supplied to order only
  • ‘X’ Dimension: Actuator Length

Additional information

21.9mm Multi Drawer Lock B568 technical drawing
