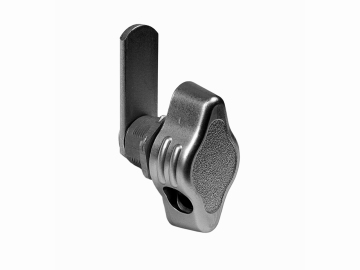

20mm Latchlock 4459

A series of 20mm latchlocks available in a number of different finishes.

Featured Technicals
20mm Latchlock 4459 Technical Drawing
Lock Description

Secured with a padlock, these locks are ideal for applications such as Lockers.

Have a question?
Lock Options
Product Code Body Length Head Height Head Depth Housing Fixing Max Panel Thickness Shackle Diameter Enquire
4459 20 50 15 Horseshoe Clip 12 Min 7 - Max 8
4463 20 50 15 Nut Fixing 12 Min 7 - Max 8
Standard Features
  • Standard movements: 1, 2
  • Lock Combinations: Padlock
  • Standard finish: Bright chrome, satin chrome, bright nickel
  • Panel thickness: 12mm
  • Fixing hole shape: Double D
  • Recommended shackle diameter: 7-8mm
  • Dimension ‘B’ & ‘X’ specification: See Cams

Additional information

20mm Latchlock 4459 technical drawing
