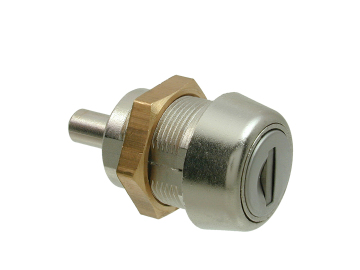

20.5mm Push To Lock B376

A range of 20.5mm Push To Locks available in bright nickel. The push to lock action makes this lock ideal for use in various applications including wooden and metal furniture.

Featured Technicals
20.5mm Push To Lock B376 Technical Drawing
Lock Options
Product Code Key Series Combinations Body Length Head Depth A Finish Head Shape Housing Fixing Lock Type Stroke Version Enquire
B376 200 20.5 9.9 7 Bright Nickel Conical Nut Fixing Push to lock 13 Shuttered
B620 200 20.5 9.9 7 Bright Nickel Conical Nut Fixing Key to lock 13 Shuttered
B640 200 20.5 9.9 7 Bright Nickel Conical Nut Fixing Push to lock 13 Standard
B888 200 20.5 9.9 9 Bright Nickel Conical Nut Fixing Push to lock 13 Shuttered
Standard Features
  • Lock Combinations: 200
  • Standard finish: Bright nickel
  • Fixing hole shape: Double D
  • Stroke length: 13mm

Additional information

20.5mm Push To Lock B376 technical drawing
