Cams and accessories for IP rated locks

PRODUCT REFERENCE NUMBERS

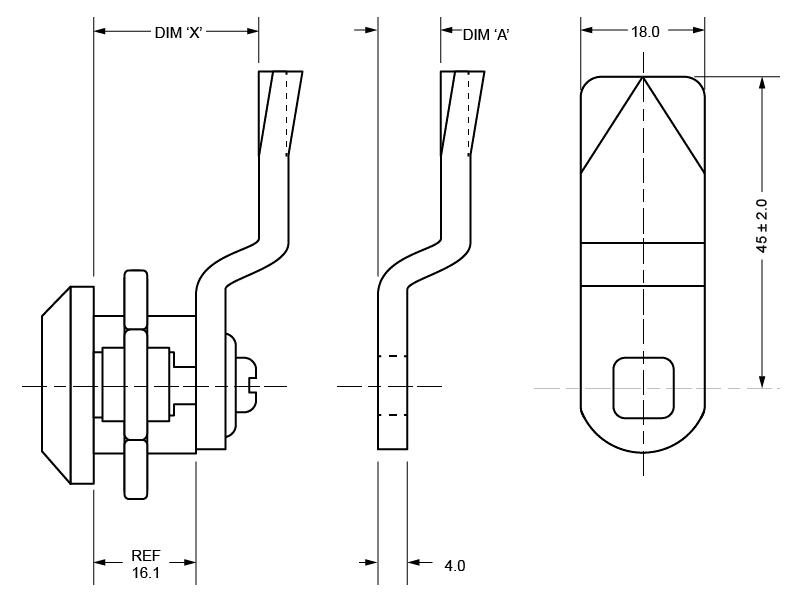

Dimension X Dimension A Part number
16 0 6525301
20 4 6525302
25 9 6525303
30 14 6525304
35 19 6525305
40 24 6525306
45 29 6525307
50 34 6525308
NOTE: DIMENSIONS ‘X’ IS IDENTICAL WHEN CAM IS USED ON PRODUCTS 0011, 0012, 0013, 0014, 0021,0022, 0023, 0024 OR 0025. NOT SUITABLE FOR 2609
